Primary Cable – 5kV
Secondary Cable - 250V
Product Details & Technical Spec

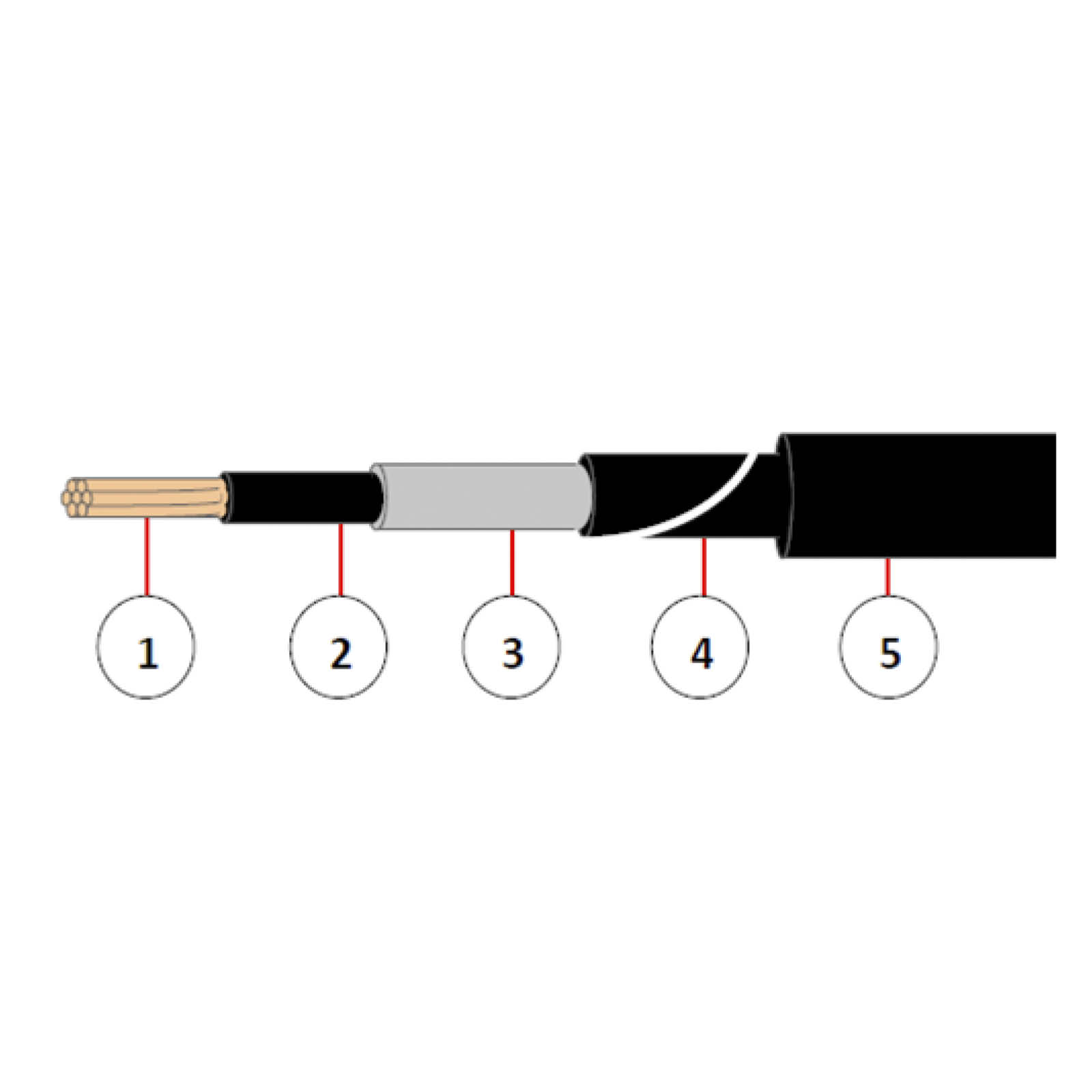

Primary Cable 5kV
Primary airfield cable is 6 square mm (7/1.04mm), plain annealed copper conductor, XLPE insulated, nylon sheathed. Primary cable can be supplied on 500 metre & 1000 metre drums.
- 1 x 6mm2 7 strand
- Conductor shield
- Extruded XLPE
- Insulation shield
- Outer sheath

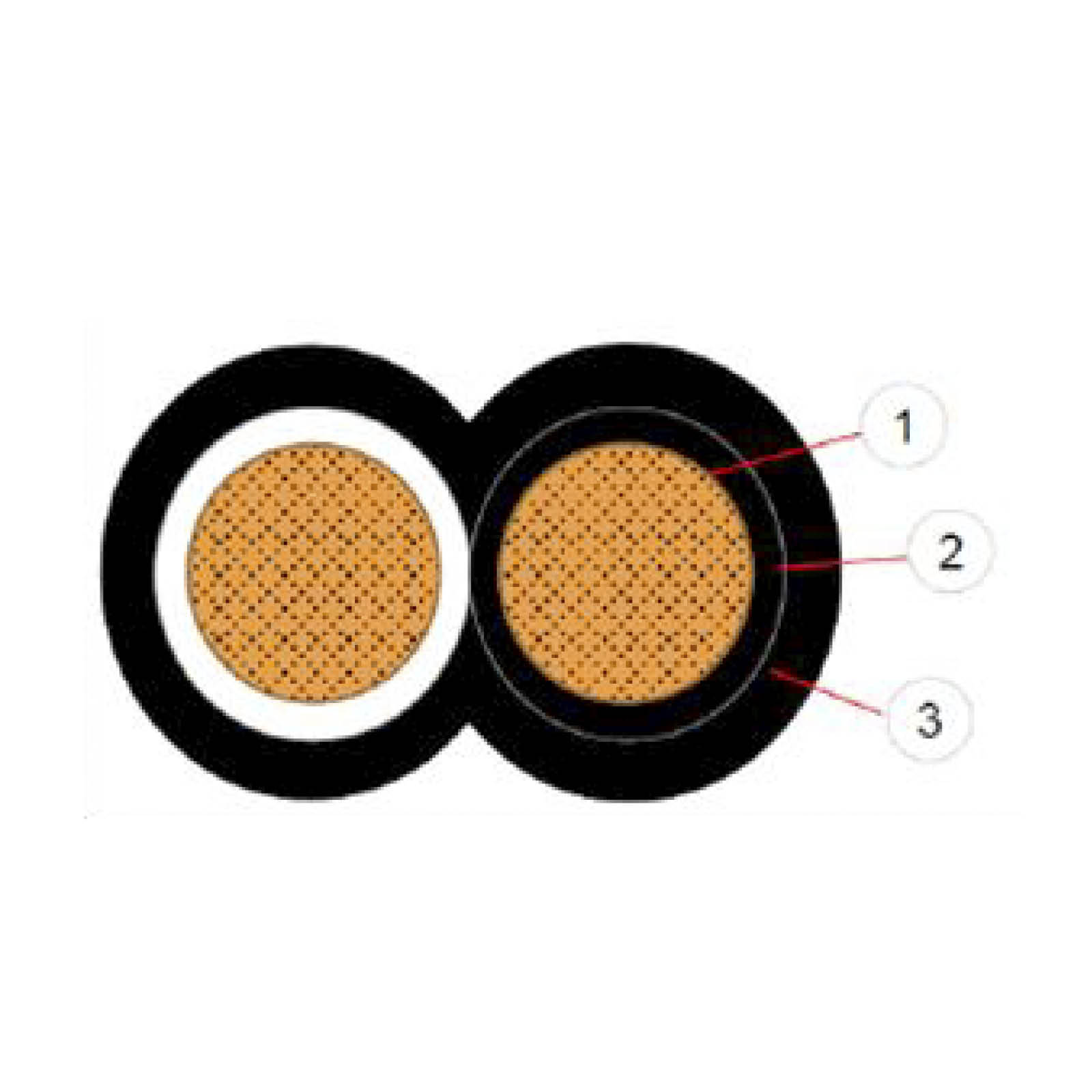

Secondary Cable 250V
Secondary airfield cable is twin core flat, V75 insulated, nylon sheathed. The most common size being 2.5 square mm (available on 500 metre & 1000 metre drums). 4mm secondary cable available on request.
- 2 x 2.5mm2 50 strand
- PVC insulation
- Nylon outer sheath
